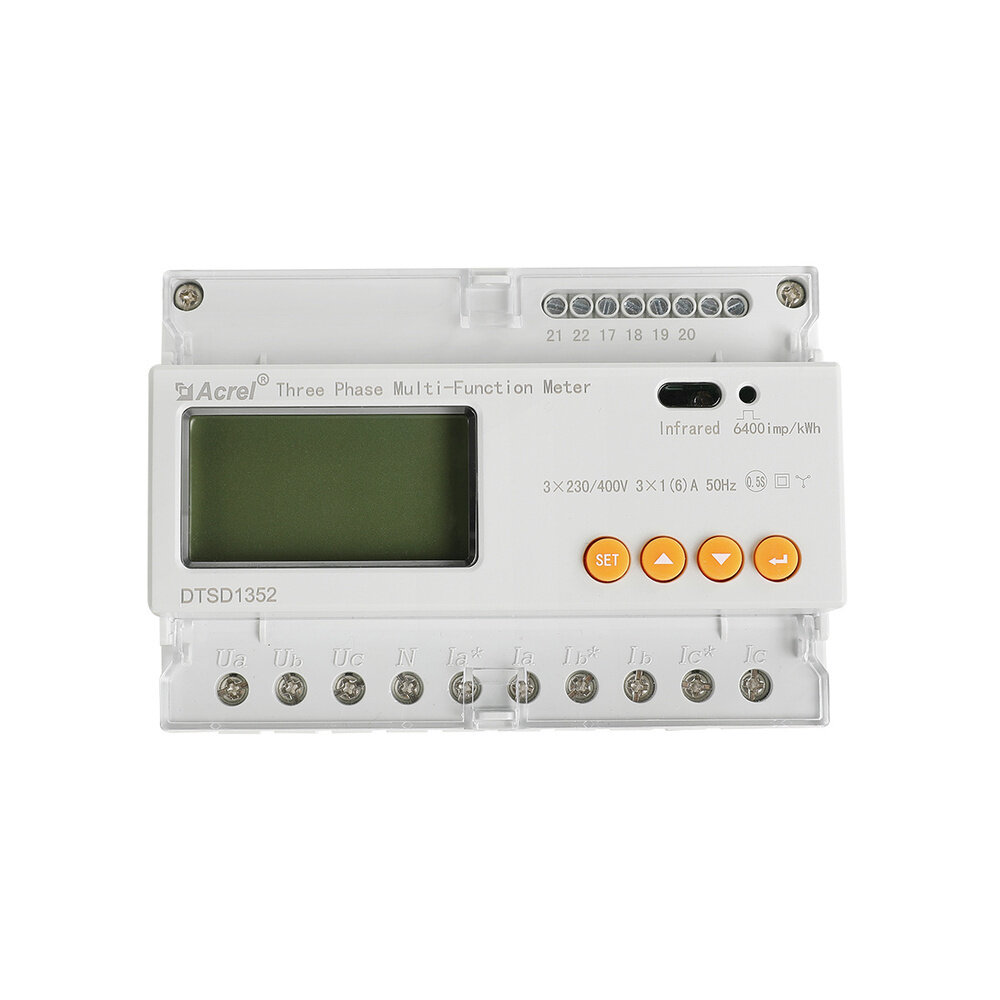

DTSD1352-C THREE PHASE KWH METER

DTSD1352-C is a smart meter designed for power supply system, industrial and mining enterprises and utilities to calculate the electricity consumption and manage the electric demand. It features the high precision, small size and simple installation. It integrates the measurement of all electrical parameters with the comprehensive

electricity metering and management provides various data on previous 12 months, checks the 31st harmonic content and the total harmonic content, realizes the remote communication and the remote control with

switching input and relay output and boasts the alarm output. It is fitted with RS485 communication port and

adapted to MODBUS-RTU. DTSD1352-C can be used in all kinds of control systems, SCADA systems and energy management systems

FEATURES:

• 8 bits lcd display

• Measure parameters: Voltage, current,active power,reactive power, apparent power, power factor and frequency (U,I ,P,Q,S,PF,F)

• Optional communication protocol and functions: Modbus RTU RS485

• Multi-tariff :frozen KWH historical, KWH in 3 months, adapt 4 time zones, 2 time interval lists, 14 time interval by day and 4 tarriff rates
