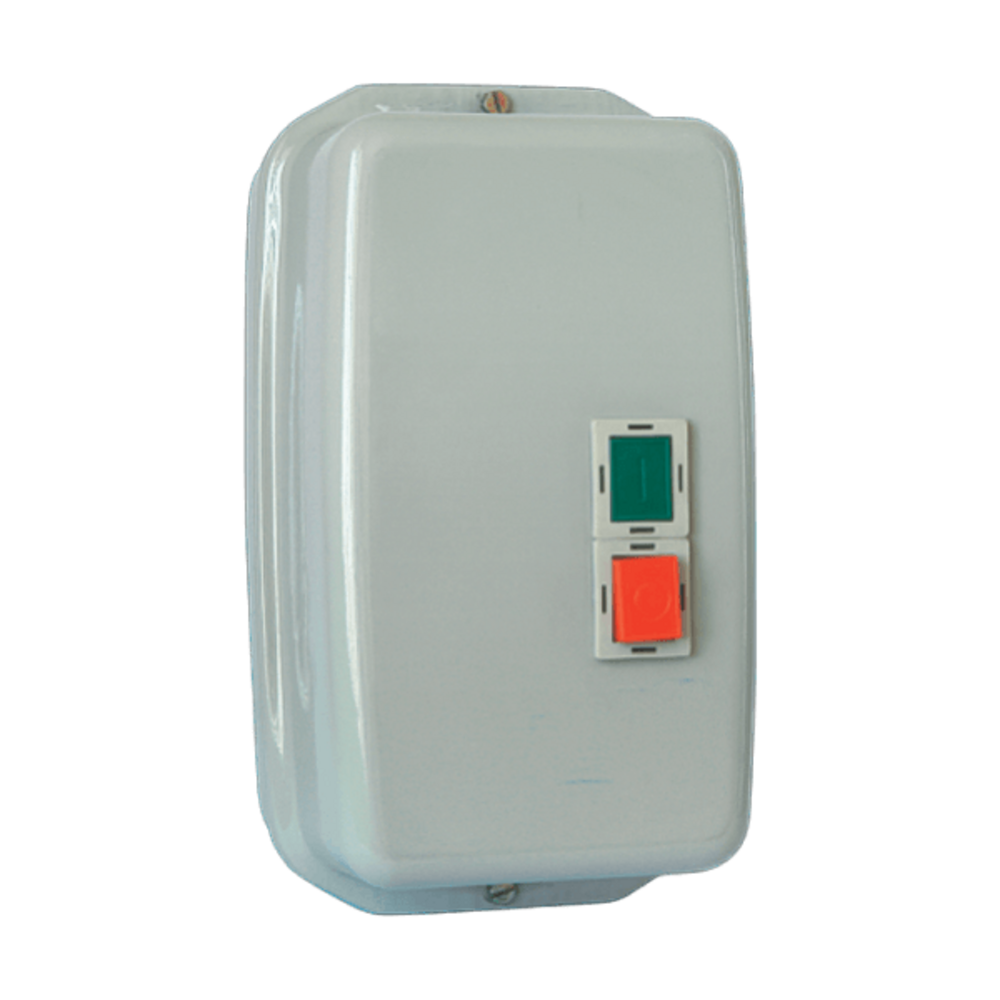

ΕΚΚΙΝΗΤΗΣ ΑΣΤΕΡΟΣ ΤΡΙΓΩΝΟΥ LT3-D32A 32А/400V 50H

Technical characteristics of LT3:
– Rated operating current range: to 93А АС
– Rated voltage of the controlling voltage: 400V АС;50/60Hz
– Rated operating voltage: 690V
– Insulation voltage: >690V
– Surge voltage wear resistance: ≥6000V
– Option for change of the power supply operating voltage
– IP code: IP54
– Ambient temperature : -10° to 65ºС
– Maximum altitude: up to 2000m

Advantages:
– Low power consumption and small dimensions
– High reliability of the current parameters
– High efficiency and long term of operation
– The metal body is covered with corrosion-proof paint
– Possibility for operation at higher frequency

Functions:
– Switching on/off alternating current three phase
  motors operating according to a scheme “star-delta”
– Does not allow secondary unwarranted switching
  on of the starter at transitory lowering of the voltage
– Protects the motor from overload in the range of
  the corresponding thermal protection
– Indication of the operating condition through a
  valve indicator
– Possibility for mounting of additional contacts (for the open type)

Applications:
– Industry
– Infrastructure

Mounting: To a flat surface using bolts/screws

Standard: EN60947-1; EN60947-4-1; LVD; EMC
