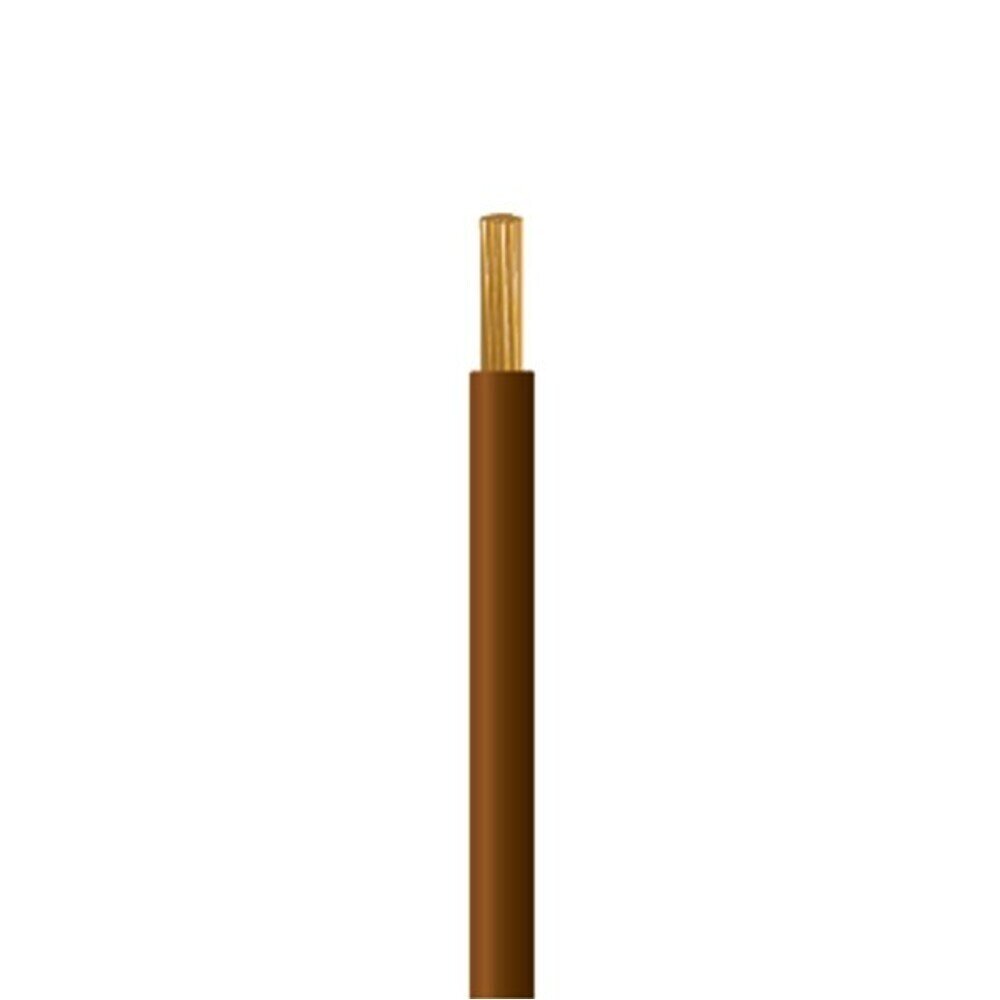

ΚΑΛΩΔΙΟ H05V-K 1X0.75mm² 0.3/0.5kV

For wiring with small bending radii and higher requirements to the cable
flexibility, in machines, distributor boards and devices.

Technical characteristics:
– Manufactured according to BDS 4305-90
– Rated voltage:
   – Cross-section from 0.20mm² to 1.00mm²: U0/U – 300/500V
   – Cross-section from 1.50mm² to 120mm²: U0/U – 450/750V
– Test voltage:
   – Cross-section from 0.20mm² to 1.00mm²: 2000V
   – Cross-section from 1.50mm² to 120mm²: 2500V
– Insulation resistance at 70°C: min. 2×10¹° Ω.cm
– Maximum conductor temperature: +70°C
– Maximum conductor temperature at short circuit for 5 sec: +160°C
– Ambient temperature:
   – Flexing installation: -5°C to +50°C
   – Static installation: -30°C to +50°C
– Minimum temperature during unstallation: -5°C
– Minimum bending radius during installation:
   – For diameters up to 10mm – 10D
   – For diameters over 10mm – 15D
– D – cable height
– Flame test: flame retardant BDS IEC 332-1

Construction:
– Copper conductors
– Flexibility class:
   – Cross-section up to 50mm² – class 5 according to BDS 904-84
   – Cross-section over 50mm² – class 4 according to BDS 904-84
– Insulation: PVC

Insulation colour:
– white, gray, black, blue, brown, red, yellow-green, green, yellow
